The Corner Shot® Scorpion Pole system is portable in its collapsed state, and the desired
length/height may be set promptly on site, according to the tactical situation and the space to be accessed.
The Corner Shot® weapon system is a worldwide patent used by special operations forces, military units, and law enforcement agencies around the globe.

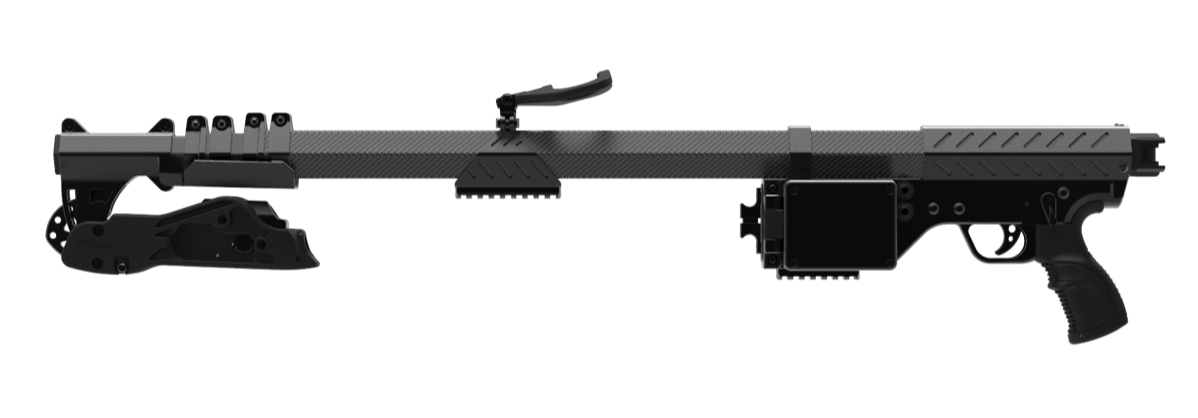

The Corner Shot® Scorpion Pole system consists of three main sections:
Base section
The base section of the Corner Shot® Scorpion Pole system contains the user interface and fire controls, along with a dedicated load-bearing assault sling. Alternately, the hand-held configuration may be enhanced by a tripod base offering improved stability and ease of use.
Main Section

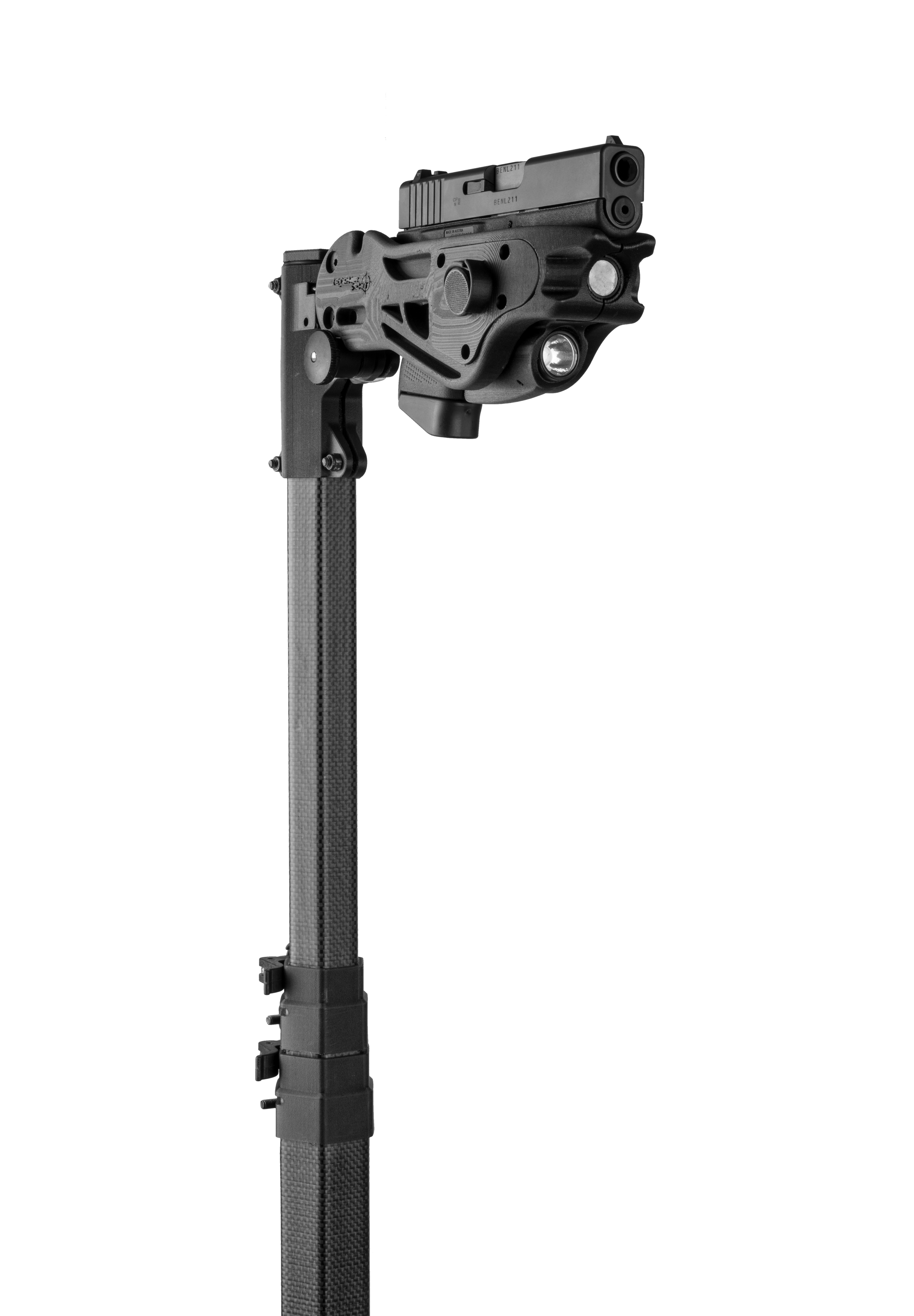

The main section of the Corner Shot® Scorpion Pole system consists of the pole itself. The telescopic assembly enables convenient carrying in the collapsed state and can be promptly extended to the desired length according to operational requirements.
Head section

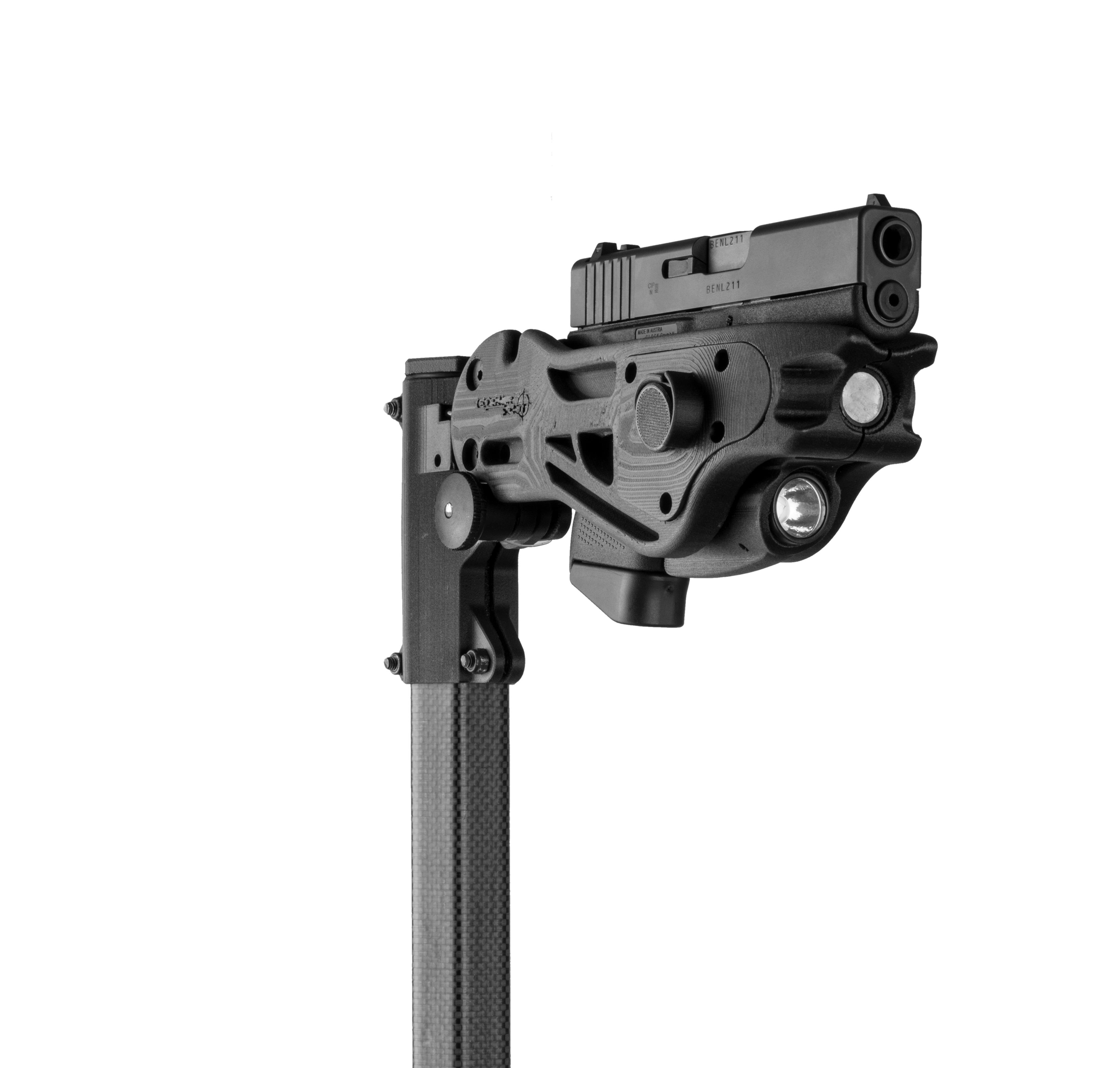

The head section of the Corner Shot® Scorpion Pole system contains the “business end” of the system – the pistol housing, camera, flashlight, and other devices that may be added as needed (for example, a glass breaker). The head section traverses through 180° in 45° increments, with angle 0 assigned to the folded position. The high-resolution camera transmits the target image to the display screen in the base section, thereby enabling the operator to observe the targets and pinpoint the target to be engaged.
Weight
CSM (excluding pistol): 8.5 lbs
Length
Retracted 4.2ft
Extended 8.5ft
Operational Height 12.4ft
Trigger Pull
Monitor Screen LCD
Display size 3.5 inches
Resolution 960X234
Broadcasting system Multi system
Batteries
Voltage Rechargeable Lithium Ion cells 11.1V
Continuous operation Approx. 160 minutes
Viewing Angles
Vertical +45°/65°
Horizontal +-60°
Built-In Tactical Light Source
Light Source Type LED
Voltage (V) 4.2V
Max. Output (Lumens) 350
