The Corner Shot® weapon systems have proven to save lives in complicated operations that could result in casualties.
The Corner Shot® operation falls in line with standard assault rifle combat drills and firearms handling
procedures. On top of that adding the ability to observe and shoot around the corner without exposing the operator’s body to enemy fire.
The Corner Shot® system consists of a two-section articulated platform:
• The forward section, housing the assault weapon, camera, and other tactical devices.
The camera can be used as a scope.
• The rear frame, containing the display screen and all of the operating controls of the weapon and
other devices.
Vertical / Overhead Employment
The Corner Shot® system is the only weapon system enabling operators to engage targets accurately and effectively using vertical employment – over obstacles, into enclosed spaces, etc.

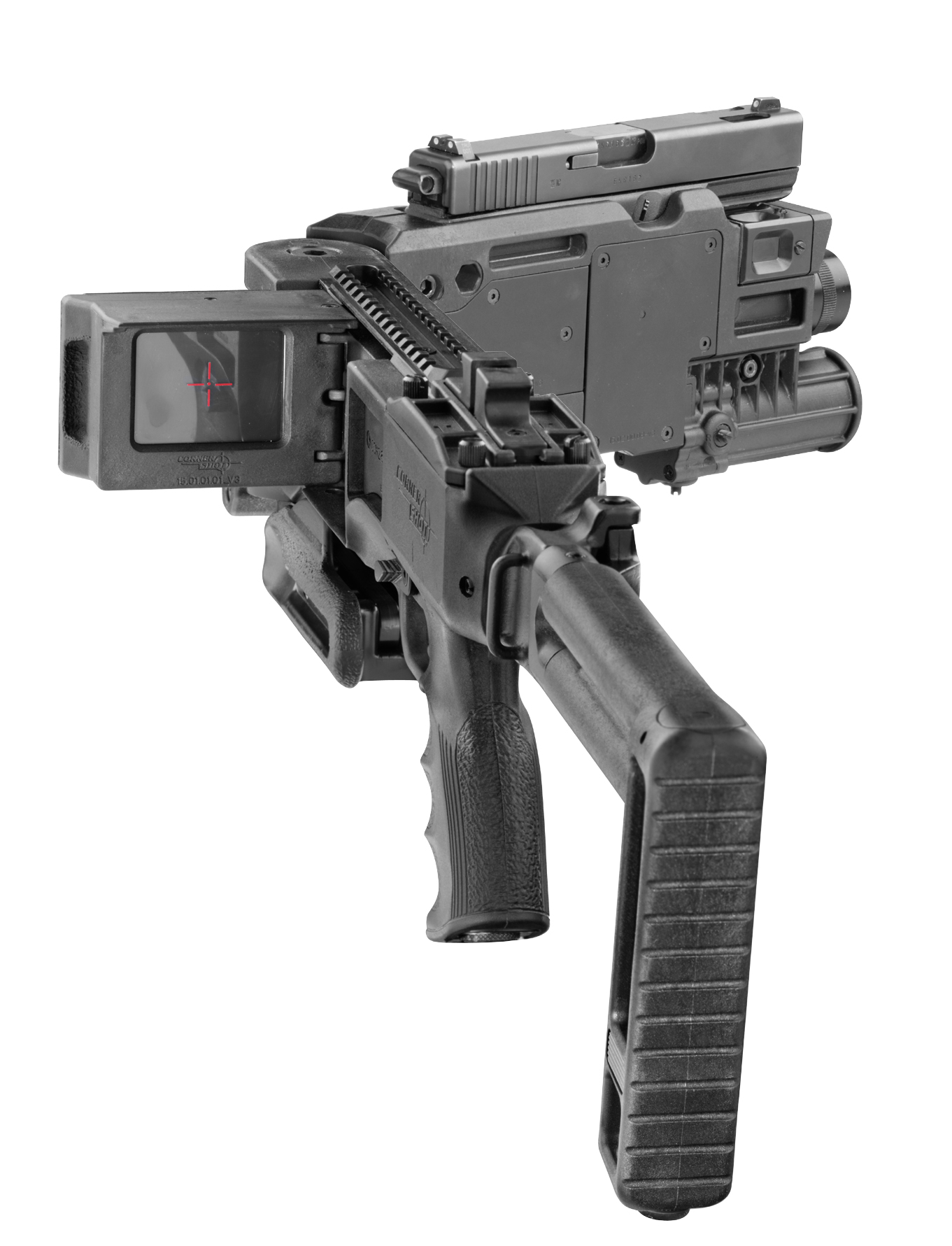

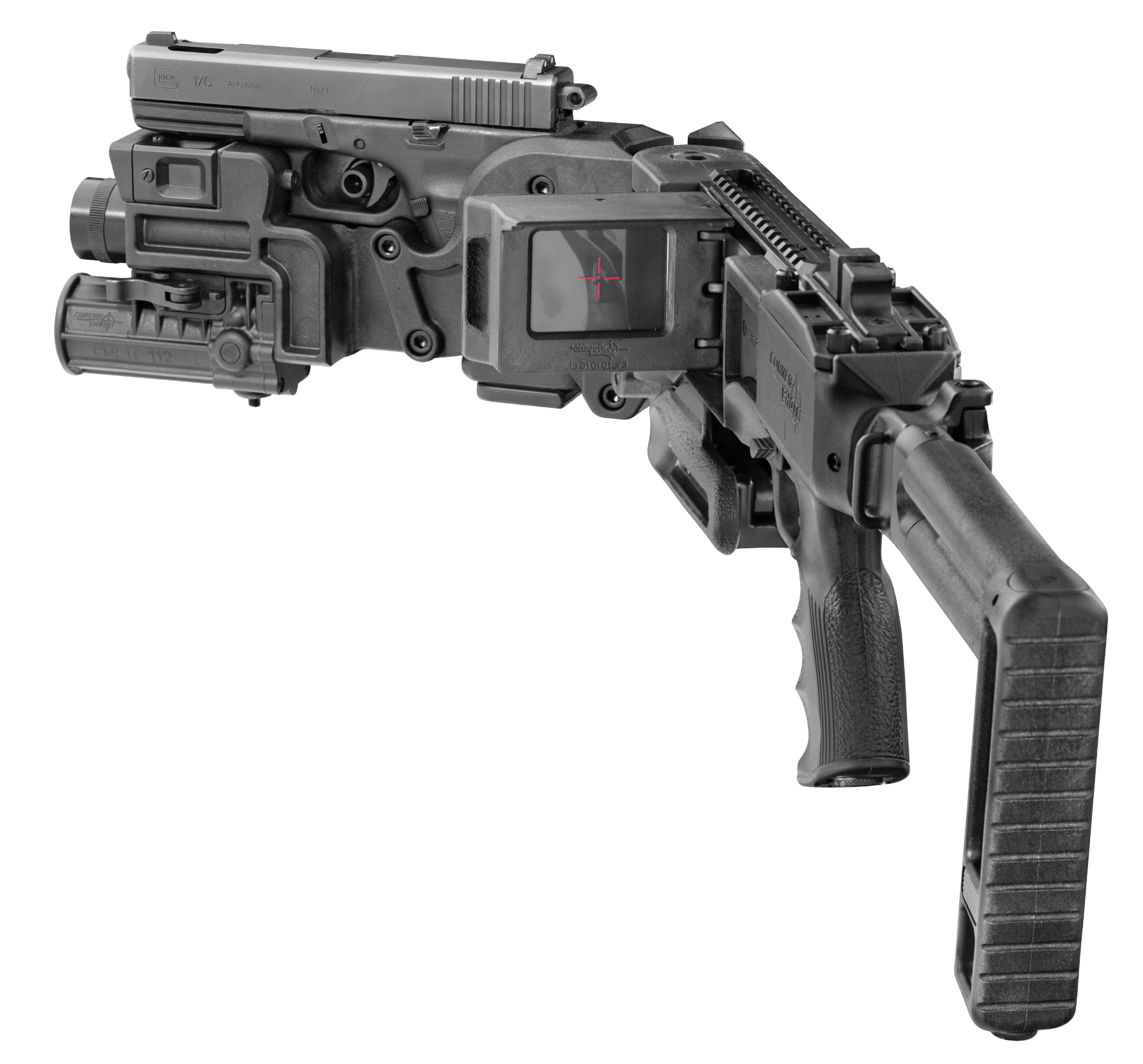

The Corner Shot® Handgun Configuration
The handgun configuration of The Corner Shot® system utilizes a standard handgun as the assault weapon installed at the forward end of the platform.
The user of The Corner Shot® platform operates the handgun normally – cocking, magazine changing and malfunction/stoppage clearing are accomplished as per standard operating procedures.
Weight CSM (excluding pistol): 8.5 lbs
Length:
Overall: 32.67”
With the stock folded: 25.2”
Pistol housing: 9.85”
CSM frame: 15.35”
Stock: 7.09”
Weight without magazine: 5.6 lbs
Traversing Angle
62° in either direction (right & left) relative to the weapon’s
normal (forward) axis.
Monitor Screen:
Display size: 2.5”
Resolution: 480W x 234H
Broadcasting system: Multisystem
Viewing angle: 55°
Optical System Power Source:
Standard Batteries
Type 8 x CR123 lithium batteries
Voltage 12V / 6V
Continuous operation 220 min. approx.
Tactical Light Source Power:
(Rechargeable Battery)
Type 2 x CR123 lithium batteries
Voltage 6V
Continuous operation 160 min. approx.
Trigger Pull Weight:
The combined trigger pull weight of the CSM is 4.63 lbs, plus the trigger pull weight of the fitted pistol.
Effective Range (CSM with 9 mm Glock-19 pistol fitted)
TypForward firing, using the pistol sights 131 yd
Traverse firing, using the monitor & a camera with a 10″ lens:
Effective range, single target 82 yd
